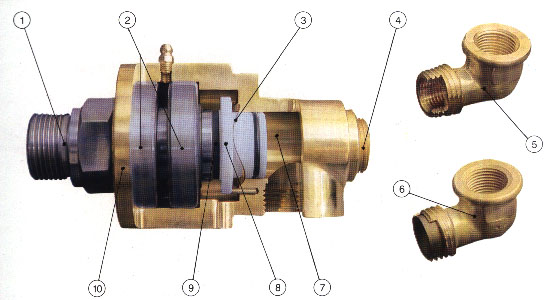

1 Stainless steel rotary shaft
2 Amply spaced ball bearings
3 Stainless steel wave spring
4 Screw plug (for one way type)
5 Back connection stationary central pipe (F)
6 Back connection rotary central pipe (R)
7 Passage completely free
8 Floating seal
9 Microlapped seal
10 Forged brass body
| AIR | WATER OIL | ||
| T MAX | °C | 100 | 160 |
| P MAX | bar | 12 | 12 |
| N MAX | min-1 | 3500 | 3500 |
ROTATING JOINTS 1/4" - 1''

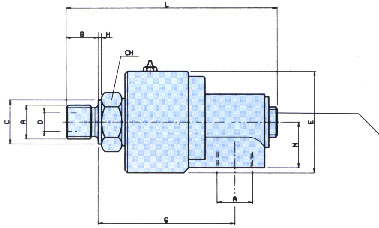

| TYPE GD |
 |
|

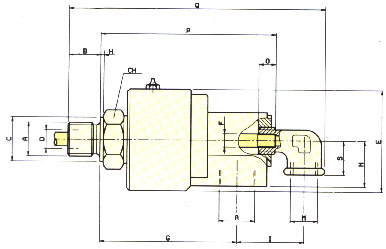

TYPE GD..F

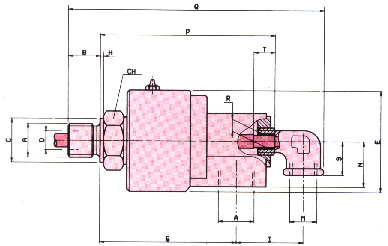

| TYPE GD..R
|
| TYPE | A BSP |
B | C f7 |
D | E | F BSP |
G | H | I | L | M BSP |
N | O | P | Q | R TUBO H13 | S | T | CH |
| GD 8 | 1/4 | 9 | - | 6 | 35 | - | 38 | - | - | 57 | - | 17 | - | - | - | - | - | - | - |
| GD 10 | 3/8 | 12 | 20 | 9 | 47 | M 6x1 | 66 | 3 | 34 | 95 | 1/4 | 20 | 10 | 80 | 121 | 6 | 20 | 15 | 24 |
| GD 15 | 1/2 | 15 | 26 | 13 | 60 | 1/8 | 87 | 3 | 37 | 123 | 3/8 | 26 | 15 | 106 | 148 | 9 | 20 | 20 | 32 |
| GD 20 | 3/4 | 15 | 30 | 19 | 70 | 1/4 | 97 | 4 | 42 | 136 | 3/8 | 30 | 15 | 120 | 161 | 12 | 20 | 25 | 36 |
| GD 25 | 1'' | 20 | 40 | 24 | 80 | 3/8 | 107 | 5 | 54 | 158 | 1/2 | 34 | 18 | 136 | 193 | 16 | 23 | 30 | 41 |
